Product Overview

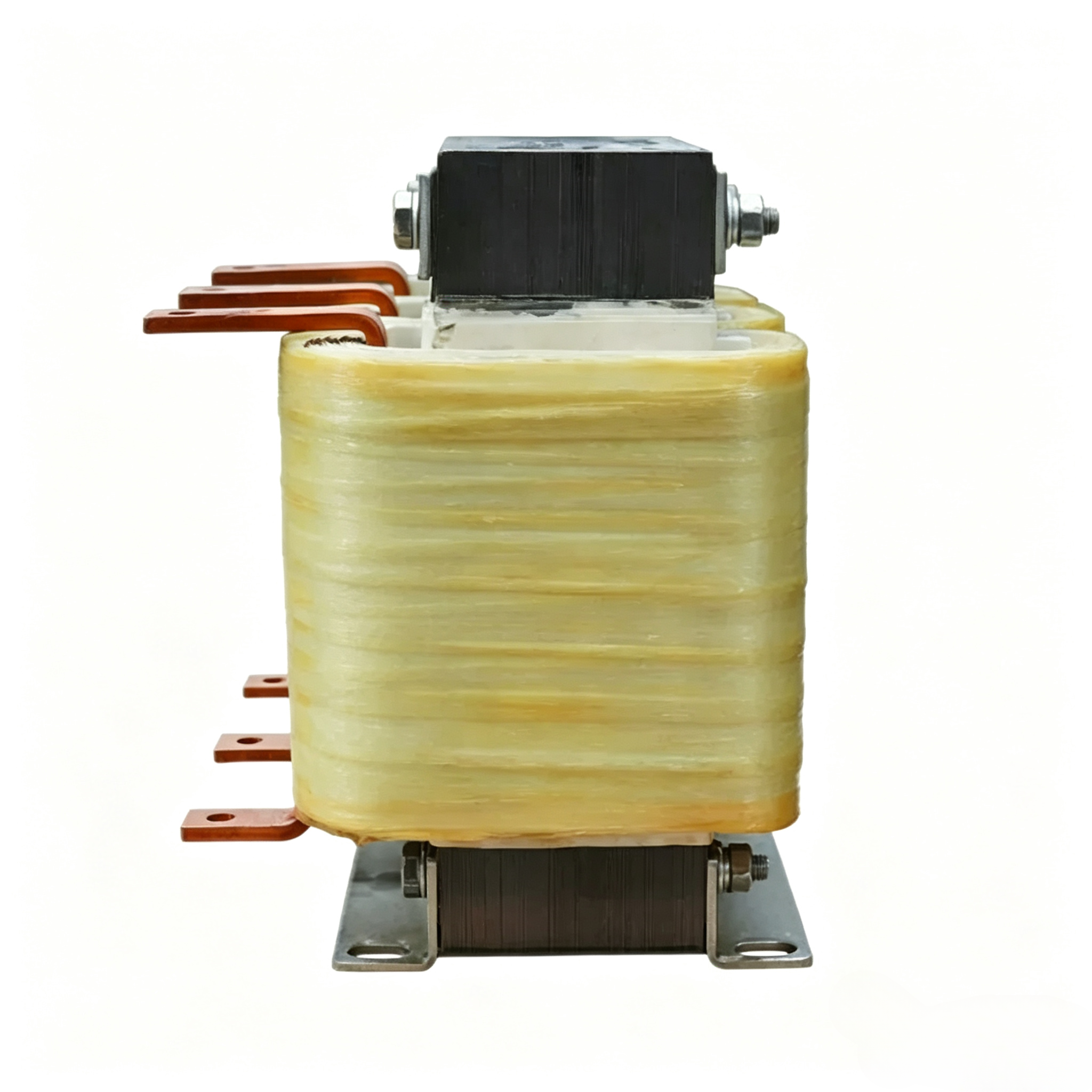

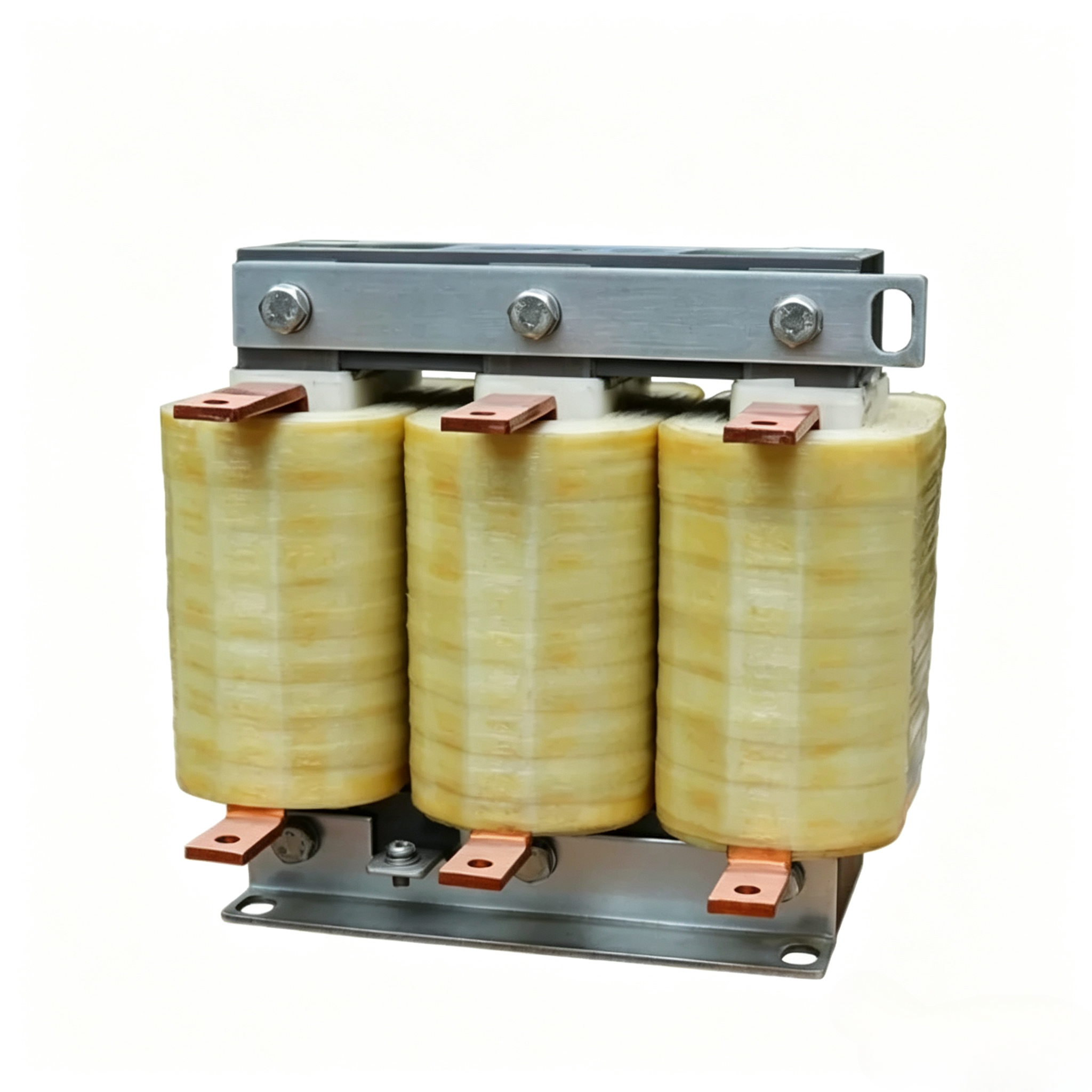

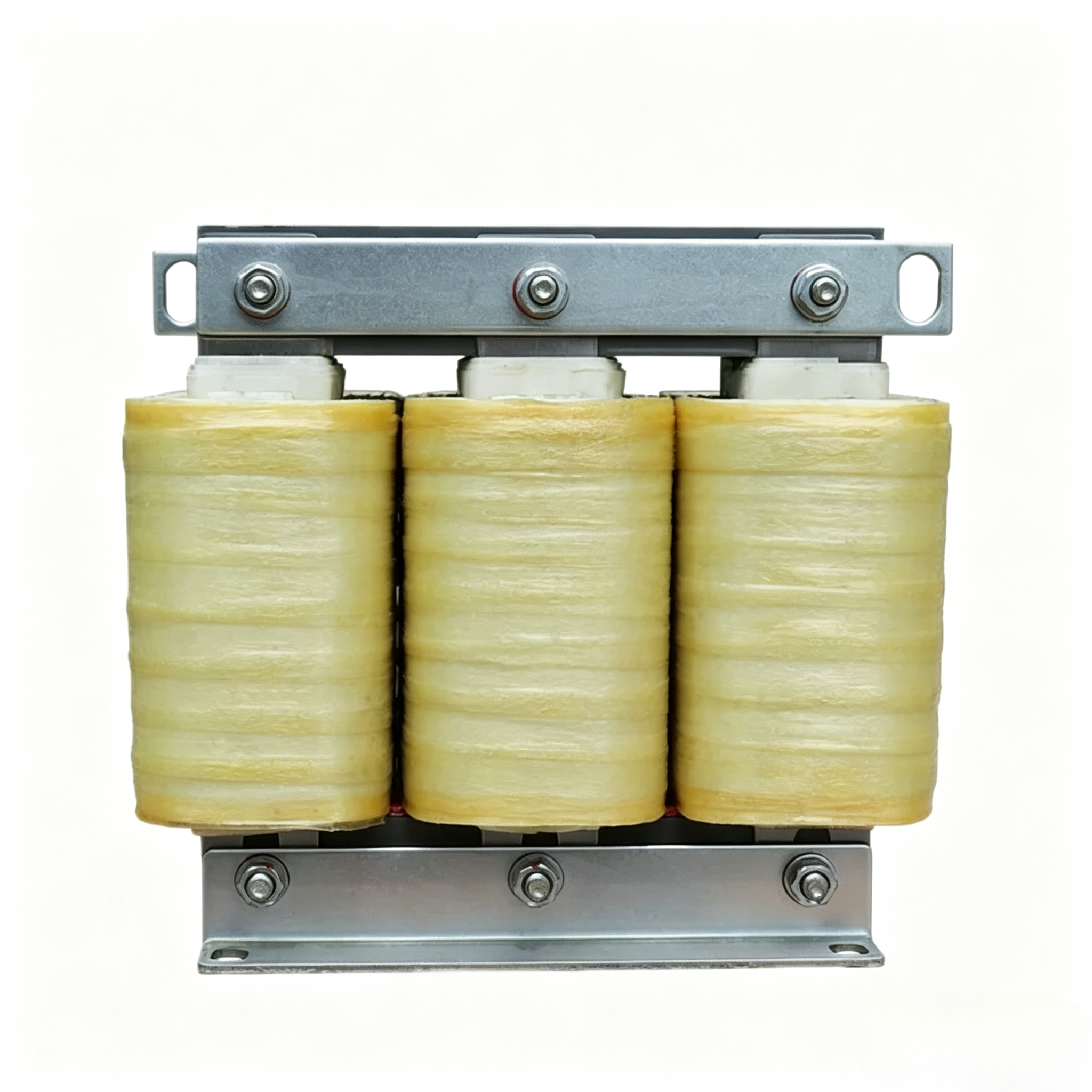

The output reactor shall be installed at the output terminal to filter harmonic voltage and harmonic current and improve power grid quality. Our series of input and output reactors are manufactured with high-quality imported silicon steel sheets and advanced craftsmanship. They feature compact size, low temperature rise and low noise.
The reactors produced by our company can be matched with inverters of domestic and overseas brands including Siemens, ABB, Sanken, Hitachi, Toshiba, Panasonic, Yaskawa, Powtran, Danfoss, Fuji, Eurotherm, LG, OMRON, Hyundai, Schneider, Lenze, Emerson and Convotherm.
Key Features
The power supply causes obvious interference (noise & overvoltage) to other equipment
Phase-to-phase voltage unbalance of power supply exceeds 1.8% of rated voltage
Extremely low-impedance circuits (power transformer capacity is more than 10 times the rated value of the VFD)
Multiple VFDs installed on one circuit to reduce line current
Power factor correction capacitors or PFC units in service
Technical Parameters
VFD Power (kW) |
Input Reactor Type |
Rated Current(A) |
Overall Size L*W*H (mm) |
Mounting Size L×W (mm) |
Voltage Drop (%) |
Inductance (mH) |
Weight(kg) |
2.2 |
ACL-4.4V/10A |
10 |
155*130*130 |
80/120x60-Φ8 |
2% |
1.401 |
3.5 |
5.5 |
ACL-4.4V/15A |
15 |
155*130*130 |
80/120x60-Φ8 |
2% |
0.934 |
3.6 |
7.5 |
ACL-4.4V/20A |
20 |
155*130*130 |
80/120x60-Φ8 |
2% |
0.701 |
3.6 |
11 |
ACL-4.4V/30A |
30 |
155*130*130 |
80/120x60-Φ8 |
2% |
0.467 |
3.7 |
15 |
ACL-4.4V/40A |
40 |
155*140*130 |
80/120x70-Φ8 |
2% |
0.350 |
5.1 |
18 |
ACL-4.4V/50A |
50 |
155*150*130 |
80/120x80-Φ8 |
2% |
0.280 |
6.0 |
22 |
ACL-4.4V/60A |
60 |
155*150*130 |
80/120x80-Φ8 |
2% |
0.234 |
6.1 |
30 |
ACL-4.4V/80A |
80 |
190*150*160 |
80/150x85-Φ8 |
2% |
0.175 |
9.0 |
37 |
ACL-4.4V/90A |
90 |
190*150*-160 |
80/150x85-Φ8 |
2% |
0.156 |
9.2 |
45 |
ACL-4.4V/120A |
120 |
190*160*160 |
80/150x95-Φ8 |
2% |
0.117 |
10.7 |
55 |
ACL-4.4V/150A |
150 |
230*150*220 |
120/180x85-Φ8 |
2% |
0.093 |
15.6 |
75 |
ACL-4.4V/200A |
200 |
230*150*220 |
120/180x85-Φ8 |
2% |
0.070 |
16.3 |
110 |
ACL-4.4V/250A |
250 |
230*160*220 |
120/180x95-Φ8 |
2% |
0.056 |
19.0 |
132 |
ACL-4.4V/290A |
290 |
265*180*250 |
135/200*90-Φ8 |
2% |
0.048 |
22.0 |
160 |
ACL-4.4V/330A |
330 |
265*190*250 |
135/200*100-Φ8 |
2% |
0.042 |
26.0 |
185 |
ACL-4.4V/390A |
390 |
265*190*250 |
135/200*100-Φ8 |
2% |
0.036 |
27.0 |
220 |
ACL-4.4V/490A |
490 |
290*160*310 |
135/200*100-Φ8 |
2% |
0.029 |
35.1 |
240 |
ACL-4.4V/530A |
530 |
290*160*310 |
135/200*100-Φ8 |
2% |
0.026 |
35.5 |
280 |
ACL-4.4V/600A |
600 |
290*170*310 |
135/200*110-Φ8 |
2% |
0.023 |
39.0 |
300 |
ACL-4.4V/660A |
660 |
290*170*310 |
135/200*110-Φ8 |
2% |
0.021 |
40.0 |
380 |
ACL-4.4V/800A |
800 |
290*190*310 |
135/200*130-Φ8 |
2% |
0.018 |
50.0 |

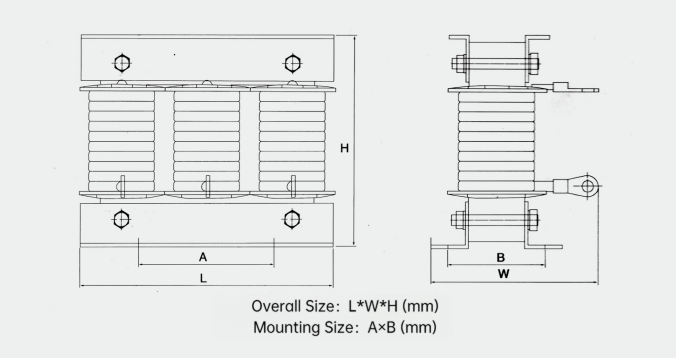

Wiring Drawing
Service Conditions
Altitude: not exceeding 1000 m.
Operating ambient temperature: -25°C ~ +45°C,
Humidity：not exceeding 90%.
No harmful gases, flammable or explosive substances in surrounding environment.
Good ventilation shall be available in the surrounding area.
If installed inside a cabinet, additional ventilation equipment shall be fitted.
