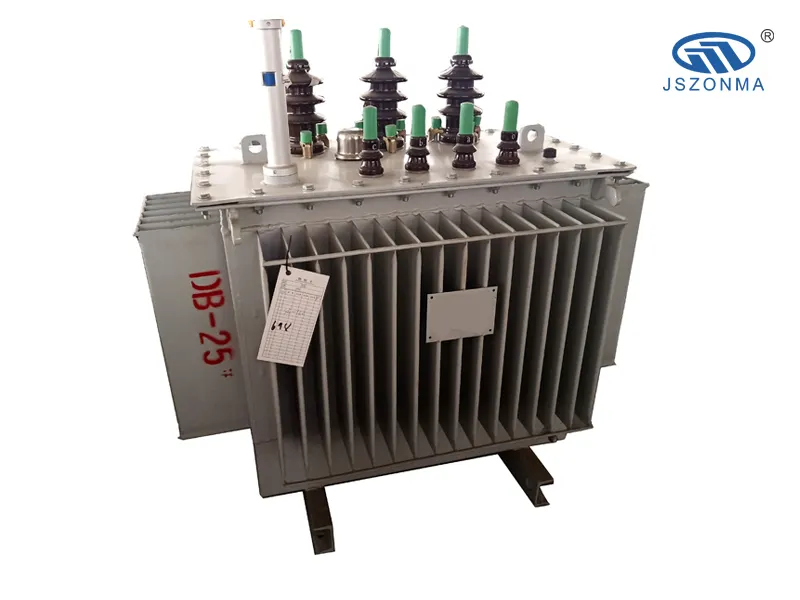

The Critical Role of Oil Immersed Transformers in Power Systems
Oil immersed transformers are really important for electrical distribution since they manage those high voltage transmissions throughout power systems effectively. Built to take on huge electrical loads, these transformers keep the power flowing steadily without interruptions. The oil inside does two main things at once: it insulates components and helps cool them down. Basically, the oil stops electricity from leaking where it shouldn't while also getting rid of all that heat produced during operation, which stops things from overheating and causing problems. Looking at the numbers shows just how critical these transformers are. Around 70 percent of all transformer failures actually lead to power outages, which affects everyone connected to the grid. Regular maintenance checks on oil immersed transformers make a big difference in avoiding these issues, so the power stays on reliably most of the time.
Why Proactive Maintenance Ensures Longevity and Efficiency
Keeping an eye on oil immersed transformers through proactive maintenance really helps them last longer while keeping them running efficiently. This approach stands in stark contrast to waiting until something breaks down before fixing it. Regular checks and quick fixes when needed save money in the long run and make systems more reliable overall. Most industry guidelines suggest following certain maintenance timelines. Companies that stick to these recommendations tend to see their equipment last much longer and avoid those costly surprise shutdowns that nobody wants. The numbers don't lie either. One real world example comes from a manufacturing plant where poor maintenance practices led to a major transformer failure costing them several million dollars in repairs and lost production time. So investing in good maintenance isn't merely about preventing disasters. It's actually smart business sense that pays off repeatedly throughout the years as operations stay smooth and expenses remain under control.
Regular Inspection Protocols for Oil Immersed Transformers
Monitoring Oil Levels and Quality Indicators
Keeping an eye on oil levels in those oil immersed transformers isn't just important, it's absolutely essential if we want them to work right and avoid problems down the road. When oil runs low, things start getting hot inside the transformer, and the insulation properties drop off too. That kind of situation often leads to all sorts of electrical trouble nobody wants to deal with. For best results, technicians need to check several quality factors regularly including how the oil looks, whether it's clear or not, and if there are any particles floating around in it. A quick glance at the oil's color tells a lot about its condition actually dark or cloudy oil usually means something bad has happened to it. Most experts recommend running these tests pretty frequently too, maybe once every few months depending on usage patterns. Dielectric testing along with acidity checks will show if the oil still meets safety requirements and works efficiently enough for day to day operations.
Identifying Signs of Oil Leakage or Contamination
Spotting oil leaks matters a lot when it comes to protecting oil filled transformers from serious damage. Most folks will notice oil spots forming around the base of the unit or see the oil level dropping over time. Water getting into the system along with dust and other particles can really mess up the oil quality, which then affects how well the transformer stays cool and insulated. Checking equipment regularly makes all the difference in catching problems before they escalate. Transformers should be looked at on schedule, maybe every few months depending on usage conditions, and maintenance crews need to follow proper procedures when dealing with any detected leaks or contamination issues. Knowing exactly where the contaminants are coming from helps technicians fix things right the first time, which keeps transformers running reliably for years instead of needing replacement sooner than expected.
Visual Checks for Bushings and External Components
Regular visual checks of bushings and other external parts on oil immersed transformers are really important for catching early signs of wear or damage before they become major problems. When doing these inspections, technicians need to carefully look at bushings, control cabinets, and all those connection points where wires meet terminals. Keep an eye out for things like hairline cracks in porcelain surfaces, strange discolorations that might indicate overheating, and any connections that seem loose or vibrating excessively. Having a good inspection checklist helps make sure nothing gets missed between routine checks. And don't forget to write down what's found each time too. Keeping records of past inspections creates a valuable reference point for spotting trends in equipment condition. This kind of documentation becomes especially helpful when planning maintenance schedules and trying to avoid those costly surprise breakdowns that nobody wants to deal with.
Oil Testing and Analysis Best Practices
Dielectric Strength Tests for Insulation Integrity
Dielectric strength testing remains essential for checking how well the insulation holds up in oil filled transformers. Basically what we're looking at here is whether the oil can handle electrical pressure before it starts to fail. Most transformers should show readings somewhere between 25 and 50 kilovolts when tested properly. If numbers fall outside this range, that usually means something isn't right with the insulation system inside the transformer casing. We've seen plenty of cases where low readings preceded major failures down the road. Industry standards suggest running these tests once every year minimum, though some manufacturers will have their own schedule based on equipment age and usage patterns. Always check local guidelines too since environmental factors can affect results significantly over time.
Dissolved Gas Analysis (DGA) for Early Fault Detection
Dissolved Gas Analysis or DGA plays a key role in spotting problems inside transformers before they become major headaches. What happens here is that technicians check the levels of various gases dissolved in transformer oil including hydrogen, methane, and ethylene among others. When certain gas concentrations start rising, this often points to trouble spots like hotspots or electrical discharges happening inside the equipment. By running regular DGAs, maintenance teams get early warning signs so they can fix minor issues before they turn into expensive breakdowns. Most experts recommend comparing test results with historical data from similar transformers and leveraging specialized diagnostic tools for accurate readings. This proactive approach helps keep systems running smoothly without unexpected shutdowns that disrupt operations and cost money.
Interpreting Moisture Content and Acidity Levels
Getting accurate readings on moisture content in transformer oil matters a lot since water really messes with how well the insulation works. Most folks rely on methods like Karl Fischer titration for checking moisture levels, aiming to keep them under 30 parts per million so the insulation stays effective. Another thing worth keeping an eye on is acidity levels too. If they get too high, corrosion becomes a problem that affects not just the oil itself but also damages the transformer components over time. The industry standard generally considers anything above 0.2 milligrams KOH per gram as problematic. When either moisture or acidity creeps past these limits, technicians need to step in with solutions such as oil dehydration processes and degasification treatments. These steps help stop things from getting worse and actually prolong how long transformers stay functional in service.
Cooling System Maintenance Strategies
Cleaning Radiators and Heat Exchangers
Clean radiators and heat exchangers are vital for proper heat release in transformers. When dirt builds up on these components, they just cant do their job right anymore, which means the whole system starts getting too hot and might even get damaged. Good maintenance plans need to consider what kind of environment the equipment operates in plus how much it actually runs. Transformers located near construction sites or industrial areas will need more frequent cleaning since dust tends to settle fast there. If someone ignores regular cleaning routines, the inside temperature goes up, making the transformer work harder than necessary. This not only reduces overall efficiency but also increases chances of expensive repairs down the road when things finally give out under pressure.
Ensuring Proper Fan Operation and Airflow
Transformer cooling fans are really important for keeping things running at the right temperature. Without proper maintenance, these fans just won't do their job well enough. Maintenance should include checking those fan blades for any signs of damage or wear, making sure all the motor connections are solid and secure, and actually measuring how good the airflow is across the unit. When we test these systems regularly, we catch problems before they get serious. Left unchecked, overheating can seriously damage transformers over time. Industry data shows transformers maintained properly last longer and work better overall. That's why most experienced technicians make it a point to check those cooling fans during routine inspections instead of waiting until something breaks down.
Managing Thermal Overloads in Oil Immersed Units
When oil immersed transformers get too hot, it really shortens how long they last and makes them work less efficiently. This happens because temperatures go beyond what the equipment was designed for, which puts extra strain on both the insulation materials and the physical structure itself. To stop these problems from happening, there are several things that can be done. First off, making sure loads are spread out properly across different parts of the system helps prevent overheating spots. Also, newer cooling methods have proven effective at keeping temperatures under control. Keeping an eye on temperature readings all the time matters a lot too. If numbers start climbing past safe limits, quick fixes like reducing load or boosting cooling capacity need to happen fast before damage occurs. Good thermal management isn't just about saving money on replacements either. Transformers that run cool tend to perform better overall and stay reliable during those critical moments when power needs matter most.
Electrical Component Evaluation and Care
Testing Insulation Resistance and Polarization Index
Regular insulation resistance testing plays a vital role in maintaining oil immersed transformers throughout their service life. When technicians run these tests, they're basically looking for weak spots in the insulation system before those spots turn into major problems down the road. This kind of proactive maintenance saves money in the long run by catching issues early on and keeping transformers running smoothly. Alongside standard resistance measurements, checking the polarization index gives maintenance teams a clearer picture of how well the insulation will hold up over time. Most experienced electricians recommend scheduling these tests every 6 to 12 months depending on factors like load conditions and ambient temperatures. Some facilities even go monthly during peak seasons. The goal isn't just compliance but actually extending equipment lifespan while avoiding unexpected downtime that costs far more than routine inspections ever would.
Assessing Winding Condition with Turns Ratio Tests
Checking the turns ratio helps determine if a transformer's windings are in good shape and confirms that the actual ratios match what was designed. When running this test, technicians look at whether the voltage coming in matches what comes out according to specs. If there's something off about those numbers, it could mean trouble somewhere in the windings themselves. Big differences in the ratios often point to issues like short circuits between turns or problems with the tap changers. Most maintenance professionals suggest doing these tests as part of routine checkups or at least once a year for transformers working under heavy loads. Keeping track of these ratios over time really matters for extending equipment life and preventing unexpected failures down the road.
Thermal Imaging for Hotspot Identification
Thermal imaging tech works really well at finding those hot spots that often point to electrical problems or parts about to fail in transformers. When techs take infrared pictures, they catch these trouble spots before they become big headaches, so major breakdowns don't happen. How often we check transformers depends mostly on how hard they're working and what kind of history they have. Some plants run their checks monthly while others might only need them quarterly. What matters most is making sure someone actually knows how to read those images properly. We've seen plenty of situations where catching a hotspot early saved companies thousands in repairs. One power station even avoided a complete shutdown last winter thanks to regular thermal scans picking up on a failing coil weeks ahead of schedule.
FAQ
1. What is the primary role of oil in oil immersed transformers?
The oil in oil immersed transformers serves dual functions: insulation and cooling. It acts as a barrier to prevent electrical leaks and dissipates heat generated, preventing overheating and potential electrical faults.
2. How often should the dielectric strength test be conducted?
Dielectric strength tests are typically recommended annually or as advised by the manufacturer, aligning with operational conditions to maintain optimal transformer performance.
3. Why is monitoring oil levels essential for transformer maintenance?
Monitoring oil levels is crucial because low oil levels can lead to overheating and reduced insulation ability, increasing the risk of electrical faults.
4. What measures can prevent thermal overloads in transformers?
Preventive measures for thermal overloads include optimizing load distribution, employing advanced cooling techniques, and continuous temperature monitoring with prompt corrective actions when necessary.
5. How can thermal imaging help in transformer maintenance?
Thermal imaging captures infrared images to identify hotspots that may indicate electrical issues or potential component failures, allowing for early intervention and prevention of larger failures.
