Product Overview

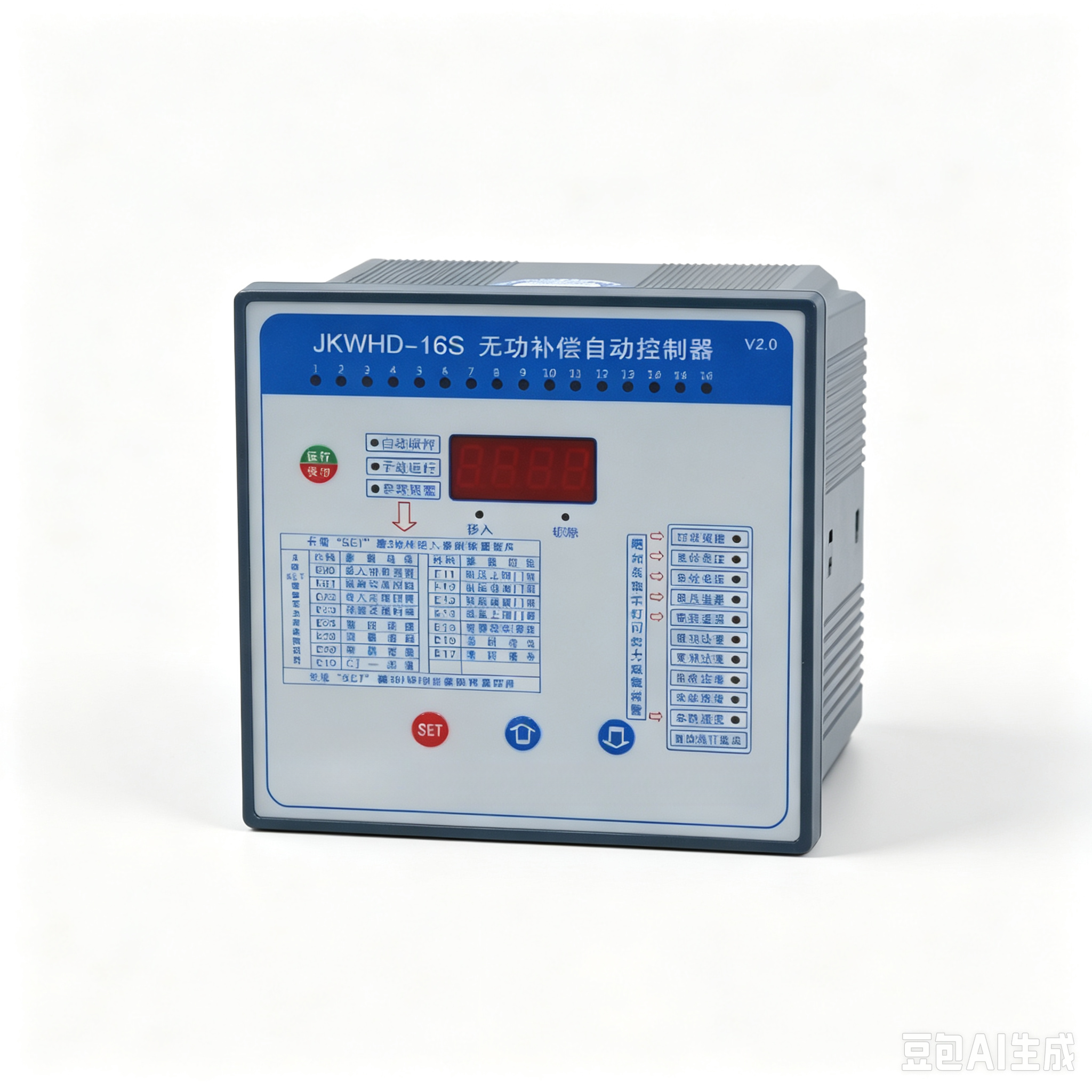

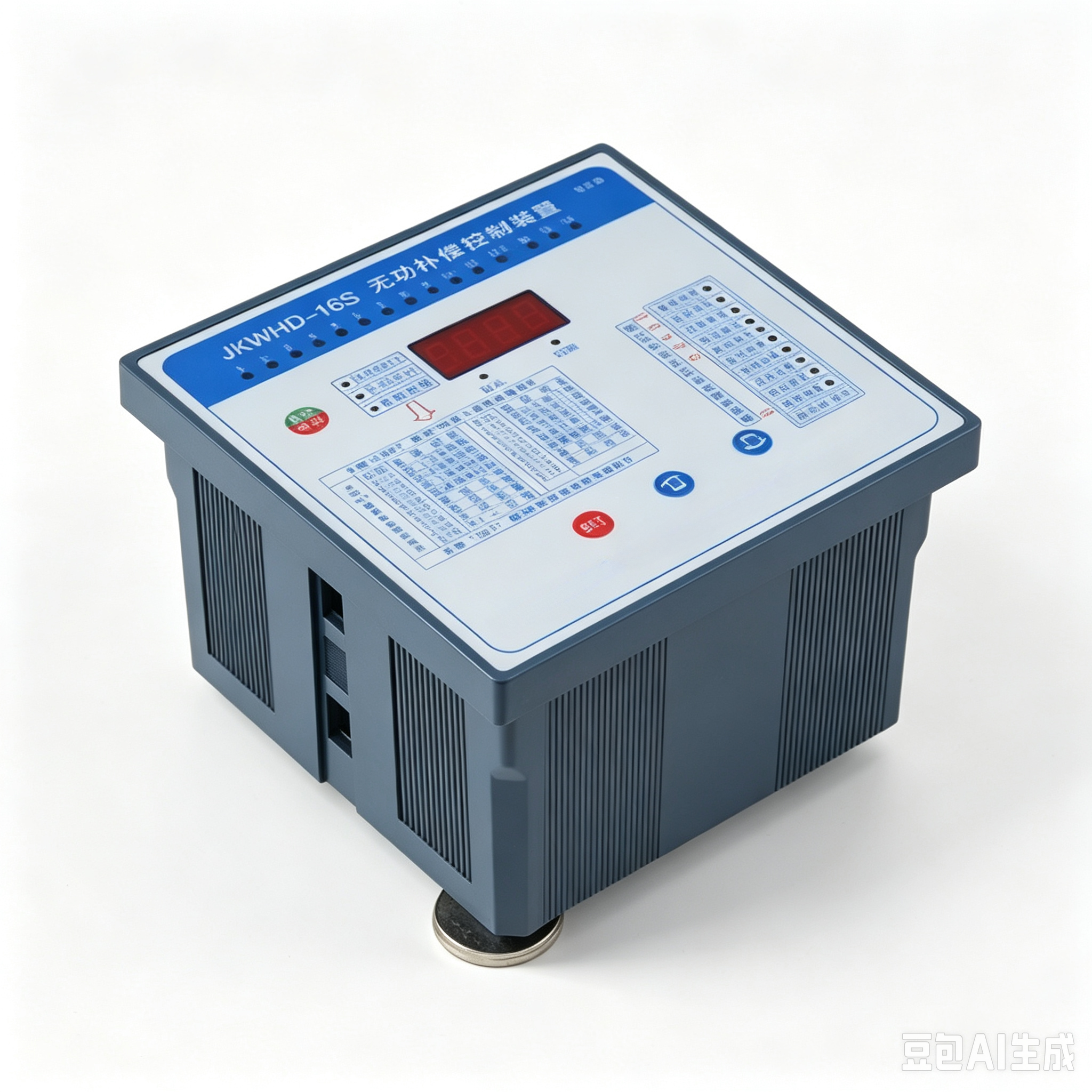

JKWF series phase‑separated automatic reactive power compensation controller adopts high‑performance microprocessor as the core component. It samples three‑phase voltage and three‑phase current signals, with a maximum of 16 output loops. It supports full phase‑separated compensation, full common compensation, and combined common‑and‑phase‑separated compensation modes. Meanwhile, it provides 12 capacitor combination modes (capacity coding), which can be selected by users via modifying control parameters, and the settings are permanently saved after modification. It controls the switching of capacitor banks by combining fundamental power factor and fundamental reactive power, featuring stable switching without oscillation and low harmonic sensitivity. It can accurately display power data and perform switching control, and is applicable to automatic reactive power compensation control for 0.4 kV systems.
Technical Parameters
Rated Voltage: AC220V±20% (3‑phase 4‑wire system)
Rated Current: AC0.1A‑5.5A; the controller enters under‑current status when current is below 100mA
Operating Frequency: 45Hz‑65Hz
Under‑voltage Threshold: 180V
Active Signal: DC12V, 10mA per channel; common terminal positive, output loop negative
Passive Output: Relay contact, AC250V/3A
Alarm Signal: Passive relay output, AC250V/3A
Total Power Consumption: ≤10W
Ingress Protection: IP30
Connection Type: Screw‑fixed socket‑type terminal block
Mounting Method: Flush mounting with bar‑lock fasteners
Cut‑out Dimension: 113mm*113mm
Overall Dimension: H122mm × W122mm × D99mm

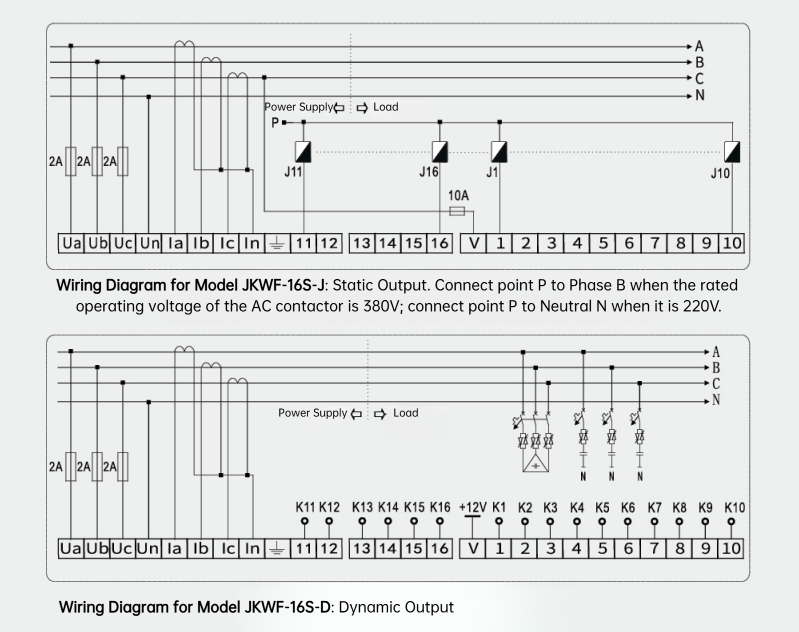

Wiring Drawing
Service Conditions
Altitude: not exceeding 2500 m
Ambient temperature: ‑20 °C ~ 50 °C
Air humidity: ≤50 % at 40 °C, ≤90 % at 20 °C
No corrosive gas, conductive dust, flammable or explosive substances in surrounding environment
No severe vibration at installation site
