How to choose between copper-core transformers and aluminum-core transformers

Selection of copper core transformers:

• Long-term full-load operation, requiring use for more than ten years, important loads, coastal chemical projects

• Annual operation time 6000 hours

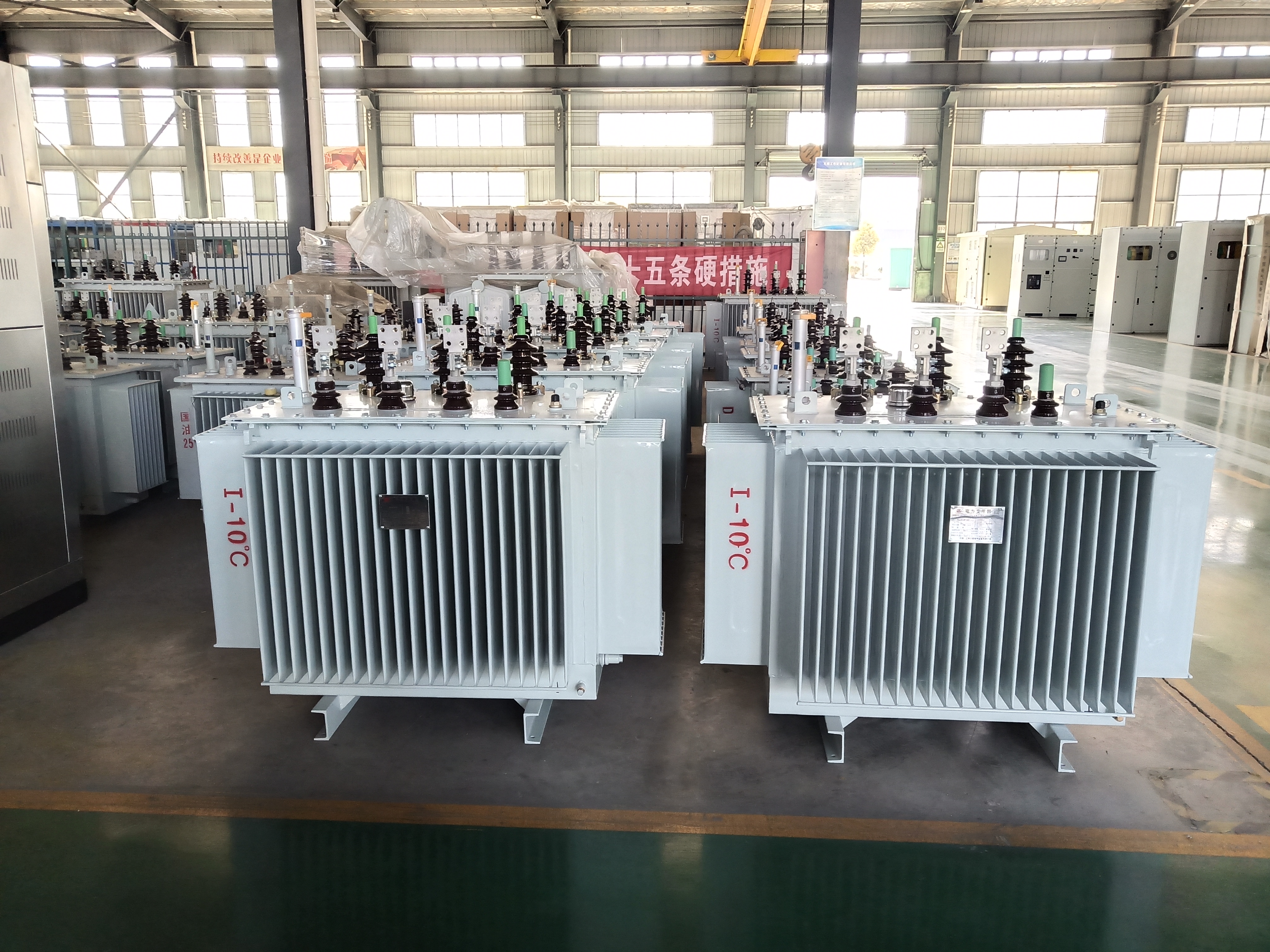

Selection of aluminum core transformers:

• Temporary construction projects, short-term use, light-load intermittent, mountain mobile equipment

• Annual operation time < 3000 hours

Specifically, the choice of which type of transformer to use needs to be analyzed from the following aspects:

Core Parameter Comparison (Same Capacity, Same Energy Efficiency Grade)

1. Conductivity and Loss (The Most Critical Difference)

• Copper Core Transformer: Conductivity is 100% IACS, with low resistance; The load loss is 15% - 25% lower than that of aluminum core, saving electricity throughout the year and having lower temperature rise during operation.

• Aluminum Core Transformer: Conductivity is only 60% of copper. To carry the same current, it requires 63% larger cross-sectional area for the coil, resulting in higher coil resistance and severe overheating at full load, leading to higher electricity loss.

2. Volume, Weight, Transportation

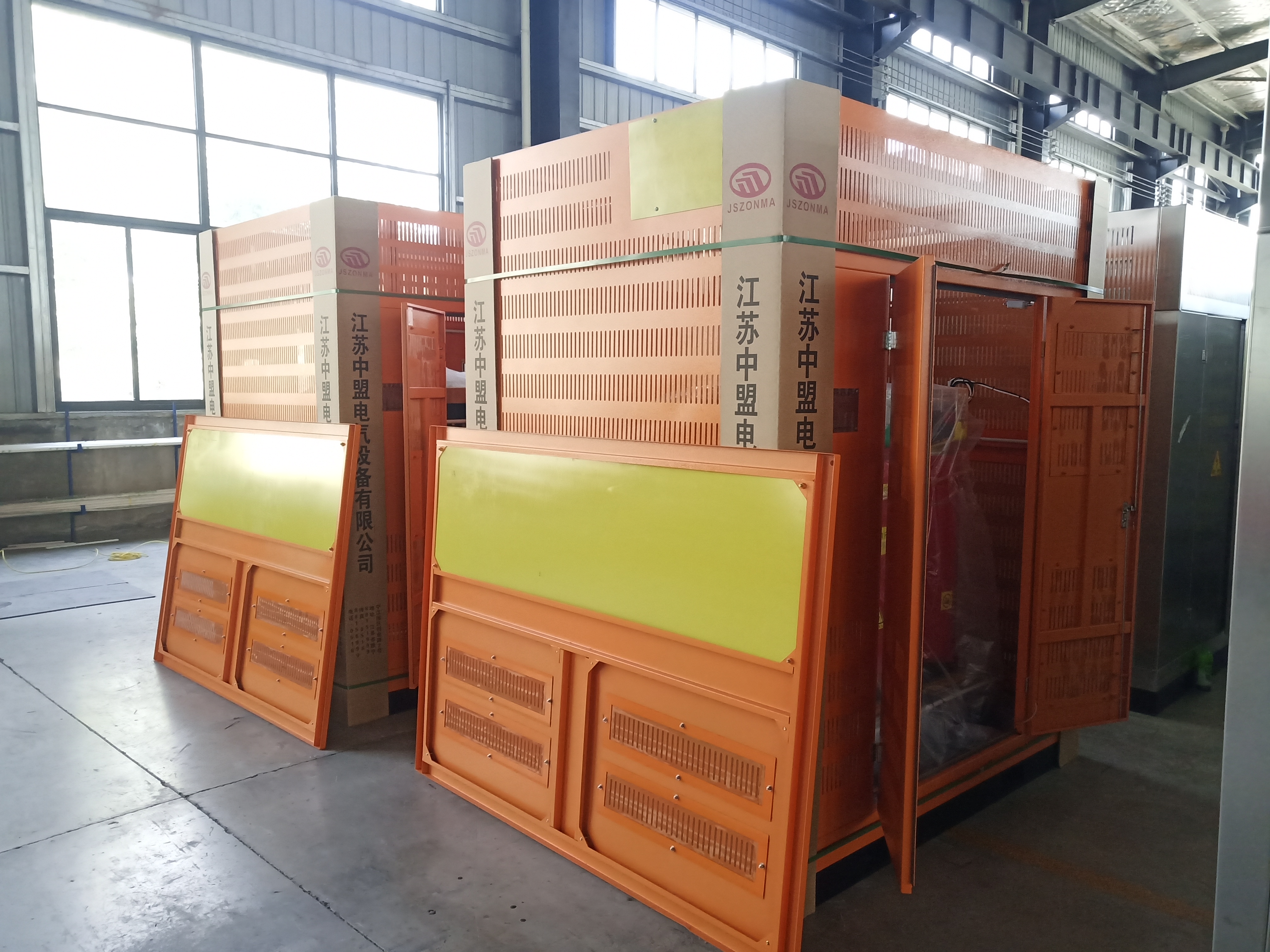

• Volume: The cross-sectional area of the aluminum coil is larger, resulting in a 10% - 25% larger overall volume of the iron core and oil tank, occupying more space and requiring a wider and deeper cabinet for the transformer.

• Weight: Aluminum has a density of 2.7, while copper is 8.9; The aluminum core is 10% - 12% lighter than the copper core, reducing the cost of hoisting and transportation, making it suitable for mobile substations.

3. Heat Resistance, Overload, Anti-Short Circuit

• Copper Core: Melting point is 1083℃, capable of withstanding short-term overload for 1 - 2 hours; It has high mechanical strength, is not prone to deformation, and has strong resistance to short circuit impact, with fewer faults.

• Aluminum Core: Melting point is 660℃, capable of withstanding overload for only 30 minutes; The material is soft, and short-circuit impact force can easily cause coil displacement and inter-turn short circuits, resulting in higher fault rates.

4. Lifespan, Corrosion, Maintenance

• Copper Core: Resistant to oxidation and salt spray / humidity, with a design lifespan of 25 - 30 years; The connection points are less prone to overheating, and daily maintenance is simple.

• Aluminum Core: Easily oxidized, with connection points prone to overheating and sparking; In coastal, humid, and chemical environments, aging is accelerated, with a conventional lifespan of 15 - 20 years, and the connection terminals need to be tightened annually.

5. Purchase Cost

Same capacity oil transformer: Aluminum core is 20% - 35% cheaper than copper core; The price difference for dry aluminum core is 15% - 25%, with lower initial investment.

6. Total Life Cycle Cost

Long-term projects with annual operation time 6000 hours: The purchase cost difference of copper core, with 3 - 5 years of electricity savings, can recover the cost; Using for 10 years or more, the comprehensive cost of copper core is much lower than that of aluminum core.

What Scenarios Require Copper Core Transformers

1. Long-term 24-hour continuous heavy-load operation

• Industrial buildings, production lines, large shopping malls, data centers, hospitals, schools, high-rise residential areas for power distribution

• Solar power / wind power booster stations, energy storage prefabricated cabins, municipal main power grid, key public welfare projects, main transformers of substations

2. High reliability of power supply, no power outages

• Hospital operating rooms, IDC rooms, laboratories, first-level fire protection areas, chemical / mining explosion-proof areas

• Places where frequent maintenance and power-off for maintenance are not allowed

3. Harsh corrosive environment

• Coastal salt spray, high humidity basements, chemical plants, dust-corrosive areas; Aluminum is prone to oxidation and burnout at the connection points, while copper has a clear advantage in corrosion resistance

4. Frequent overload, impact load

• Pressing, welding machines, elevator-intensive areas, charging pile clusters, steel rolling, etc., impact loads; Copper has a strong tolerance for overload and is not prone to thermal damage

5. Long-term use of equipment (≥ 10 years), pursuit of energy saving

• Self-owned fixed assets, self-managed parks, considering the total life cycle cost, copper core saves electricity, requires less maintenance, and has a doubled lifespan

What Scenarios Are Suitable for Aluminum Core Transformers

1. Short-term temporary power supply (within 3 - 5 years for removal)

• Temporary power distribution for construction sites, temporary power supply for exhibitions, short-term mining, rental projects, temporary power supply for demolition areas

• Used immediately and does not need to bear electricity loss during the long-term period, prioritizing the reduction of initial procurement costs

2. Low load, intermittent operation, low load rate (annual < 60%)

• Rural branch power distribution, small irrigation pump stations，backup power (rarely full load)

• Low load， the difference in heat generation and loss is not obvious， and the economic advantage of aluminum core is prominent

3. Requires lightweight， easy for hoisting and transportation

• Mobile box substations, vehicle-mounted substations, construction sites with narrow mountain roads and poor lifting conditions; aluminum core complete units are lighter, reducing transportation and lifting costs

4. Budget-limited, short-term transitional projects

• Small-scale village-level simple power distribution, short-term leased power stations, without long-term energy-saving requirements, only controlling the initial investment

Therefore, whether to choose an aluminum-core transformer or a copper-core transformer depends on the specific application scenario and project requirements. Jiangsu Zhongmeng Electrical can provide customized transformer production based on the specific needs of your project.

FAQ:

1. If I'm only using the transformer for a short period of time, what should I choose?

Choose the one with an aluminum core, as it is more suitable and has a lower cost.

2. My project is a photovoltaic power generation project. What transformer should I choose for it?

Choose the one with a copper core, as it is suitable for long-term use and has simple maintenance.

3. I'm choosing a transformer for a hospital project. It needs to run 24 hours a day. What transformer should I choose?

Choose the one with a copper core. It requires less maintenance and has a longer lifespan.

4. Currently, my project budget is limited, and I just want to use it for a short period of time. What transformer should I choose?

Choose the one with an aluminum core, as it has a lower cost.

5. What kind of transformers can Jiangsu Unita Electric provide for us?

Jiangsu Unita is an China oil immersed transformer manufacturer . We can provide you with transformers with aluminum cores, or transformers with copper cores.
