500kVA 10kV electrical Transformer: How to Choose Dry-Type or Oil-Immersed Type

Introduction

The 500kVA 10kV electrical transformer is a mainstream power distribution device widely used in commercial buildings, industrial workshops, small solar stations and urban grid upgrades. For most engineering and procurement projects, the key decision is choosing between a 500kVA dry-type electrical transformer and a 500kVA oil-immersed electrical transformer. While both provide standard voltage conversion, they differ significantly in safety, installation conditions, cost, stability and maintenance, directly affecting project compliance and long-term operation.

Many purchasers only compare upfront prices and make improper choices, leading to fire safety risks, high maintenance costs or insufficient load performance. This concise guide focuses purely on 500kVA transformer scenarios to help you pick the right model efficiently.

Basic Working Principle of 500kVA Dry-Type & Oil-Immersed Electrical Transformers

The core difference between the two 500kVA electrical transformer types lies in insulation and cooling systems. The 500kVA dry-type transformer adopts epoxy resin casting insulation and air cooling, with no flammable oil, featuring high safety and compact size. The 500kVA oil-immersed transformer uses mineral insulating oil for heat dissipation and insulation, delivering superior heat exchange and overload resistance with fully sealed internal structures.

Key Comparison for 500kVA Electrical Transformer Selection

1. Fire Safety & Installation Environment

The 500kVA dry-type electrical transformer is self-extinguishing, oil-free and pollution-free, meeting strict international fire safety standards. It requires no fire isolation walls or oil collection facilities, supporting direct indoor installation. It is ideal for densely populated and high-safety sites such as hospitals, schools, shopping malls and basement power rooms.

The 500kVA oil-immersed electrical transformer carries minor oil leakage and combustion risks, so it is not suitable for indoor use. It is exclusively recommended for outdoor environments, including open-air substations, rural grid stations and isolated industrial power distribution zones.

2. Cost & Long-Term Operating Economy

The 500kVA dry-type electrical transformer has a 20%-30% higher initial cost than the oil-immersed type due to premium epoxy materials and precise casting processes. However, it eliminates extra expenses for fire-proof construction, regular oil testing and oil replacement, greatly reducing long-term operational costs.

The 500kVA oil-immersed electrical transformer features a lower factory direct price, suiting projects with tight initial budgets. Nevertheless, it needs routine inspections of oil quality, oil level and tank sealing, resulting in continuous long-term maintenance investment.

3. Load Adaptability & Operation Stability

Benefiting from efficient oil heat dissipation, the 500kVA oil-immersed electrical transformer supports 130%-150% short-term overload operation. It perfectly adapts to industrial workshops and photovoltaic power stations with fluctuating and unstable loads.

The air-cooled 500kVA dry-type electrical transformer is designed for stable, continuous rated loads. It runs reliably in commercial and public facilities but cannot withstand frequent overloads, which will accelerate insulation aging.

4. Maintenance & Service Life

The 500kVA dry-type transformer is nearly maintenance-free, only requiring regular dust cleaning, and fits remote sites with limited technical support, with a 20-25 year service life. The sealed 500kVA oil-immersed transformer offers a longer 25-30 year lifespan but relies on standardized regular maintenance to avoid seal aging and insulation damage.

Clear Selection Rules for 500kVA Electrical Transformers

Choose 500kVA Dry-Type Electrical Transformer If:

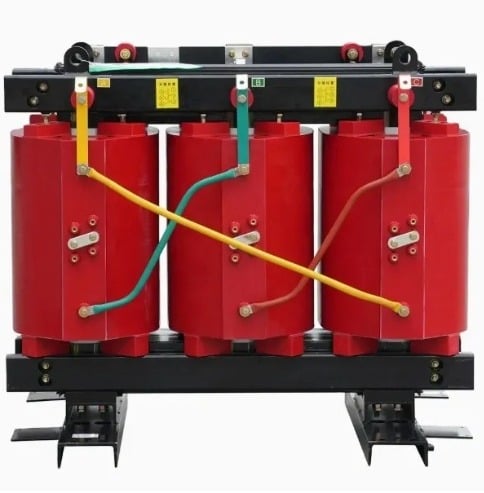

Indoor installation, strict fire/environmental protection requirements, limited space, stable load and low long-term maintenance budget. You can choose JSZONMA SCB10 10kV epoxy resin cast dry-type electrical transformer.

Choose 500kVA Oil-Immersed Electrical Transformer If:

Outdoor installation, fluctuating industrial loads, strong overload demand and limited initial procurement budget. You can choose JSZONMA S7 and S11 oil-immersed electrical transformers.

Conclusion

Neither 500kVA transformer type is universally superior. The best choice depends on your installation scenario, safety standards, load conditions and budget. JSZONMA supplies standard and customized 500kVA 10kV dry-type and oil-immersed electrical transformers compliant with IEC 61558 - 1:2019 and CE certification standards. All units undergo professional SFRA winding deformation testing before delivery to ensure safe, stable long-term operation. Contact our team for a free technical solution and factory direct quotation.
