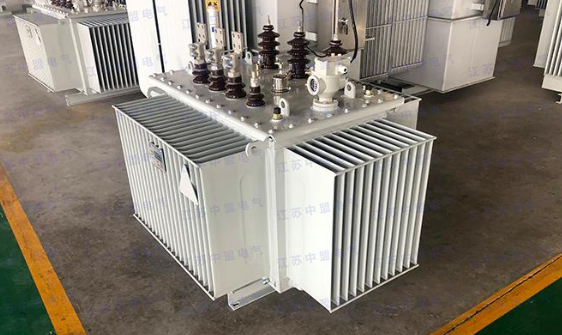

Oil distribution transformers include hermetically sealed, amorphous alloy, conservator type and on-load tap changer type, which is usually pole mounted or installed in distribution station for daily lighting and factory power whose LV output up to 0.4kV.
Our distribution transformer rating is up to 2500kVA, and primary voltage up to 35kV. The corrugated tanks as thermal expansion and contraction component enable the transformer oil completely isolated with the atmosphere.
Oil distribution transformer with primary voltage range of 6,10,10.5,11,20,22,24,33, 35,38.5kV can be manufactured according to customer requirements.
High efficiency, low loss, low noise, strong load resistance, and long service life.
Main Characteristics:
1. Designed by patented technology and software with premium performance.
2. Core is made of high quality cold-rolled grain-oriented silicon steel sheet which produced in step-lap technology.
3. Winding is using high strength enameled wire or paper-insulated wire or copper belt, which offers uniform distribution of ampere-turns, reasonable insulation structure with high ability to withstand short-circuit.
4. Oil tank is corrugated type with high corrosion resistance. Tank surface pre-treatment liquid and coating powder adopts international top brands. The tank is degreasing, pickling, phosphorated, electrophoresis by automatic production lines, then power spray coating and heat-solidify.
5. The active part applies core free-hanging structure. The gasket is made of high-quality acrylate rubber which can inhibit ageing caused by sun and heat.
Advantages:
1. Low loss, low noise, low partial discharge, high reliability.
2. Safety with elegant appearance.
3. Convenient installation and simple maintenance.
4. Compact with small occupied area.
Applications
1. Building Infrastructure and Industrial: Airports, hospitals, factories, shopping malls, hotels, commercial and residential towers.
2. Utility: Generation, transmission, distribution substations, water and waste water treatment plants.
3. Oil and Gas: Oil and gas plants, petrochemical plants and refineries.
