Product Overview

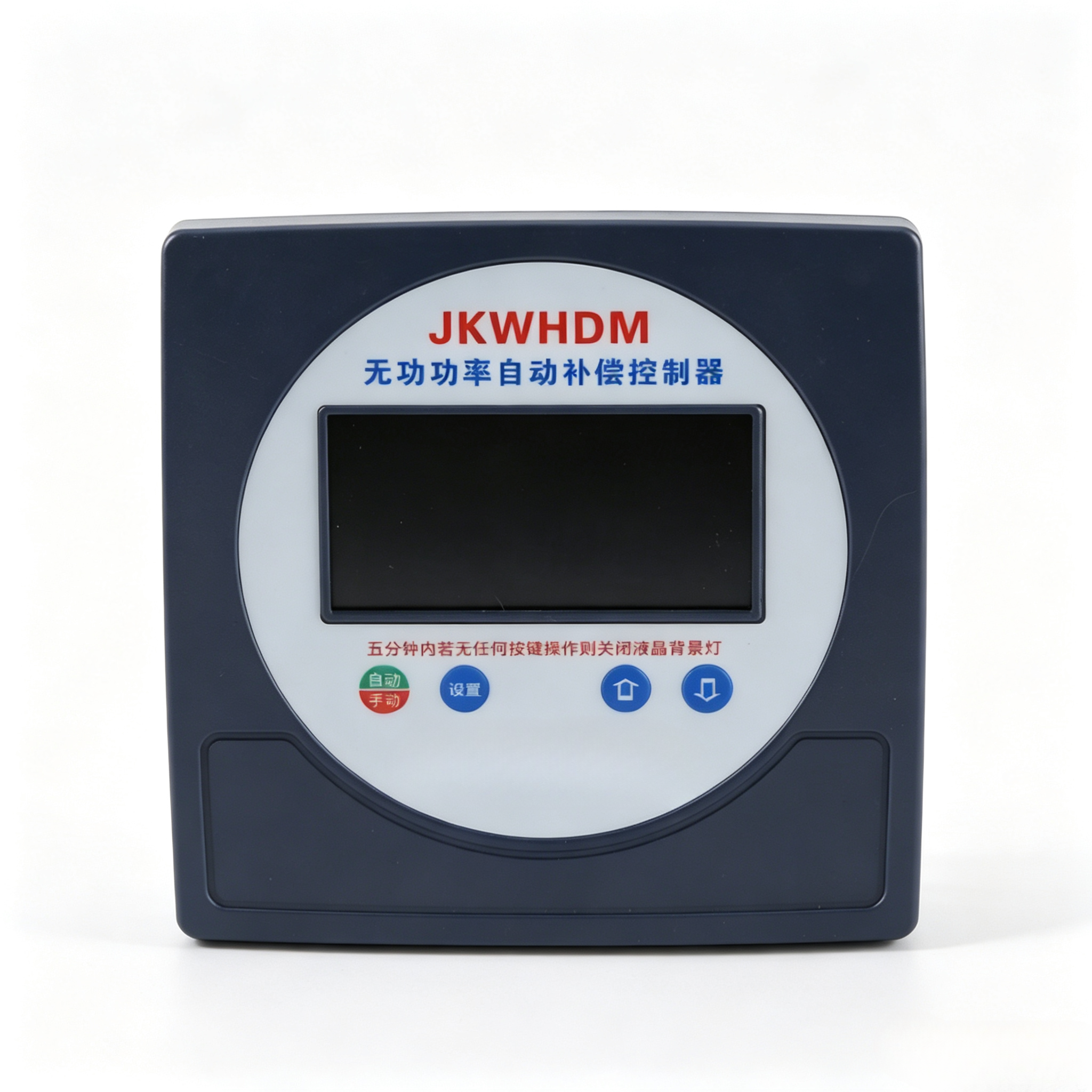

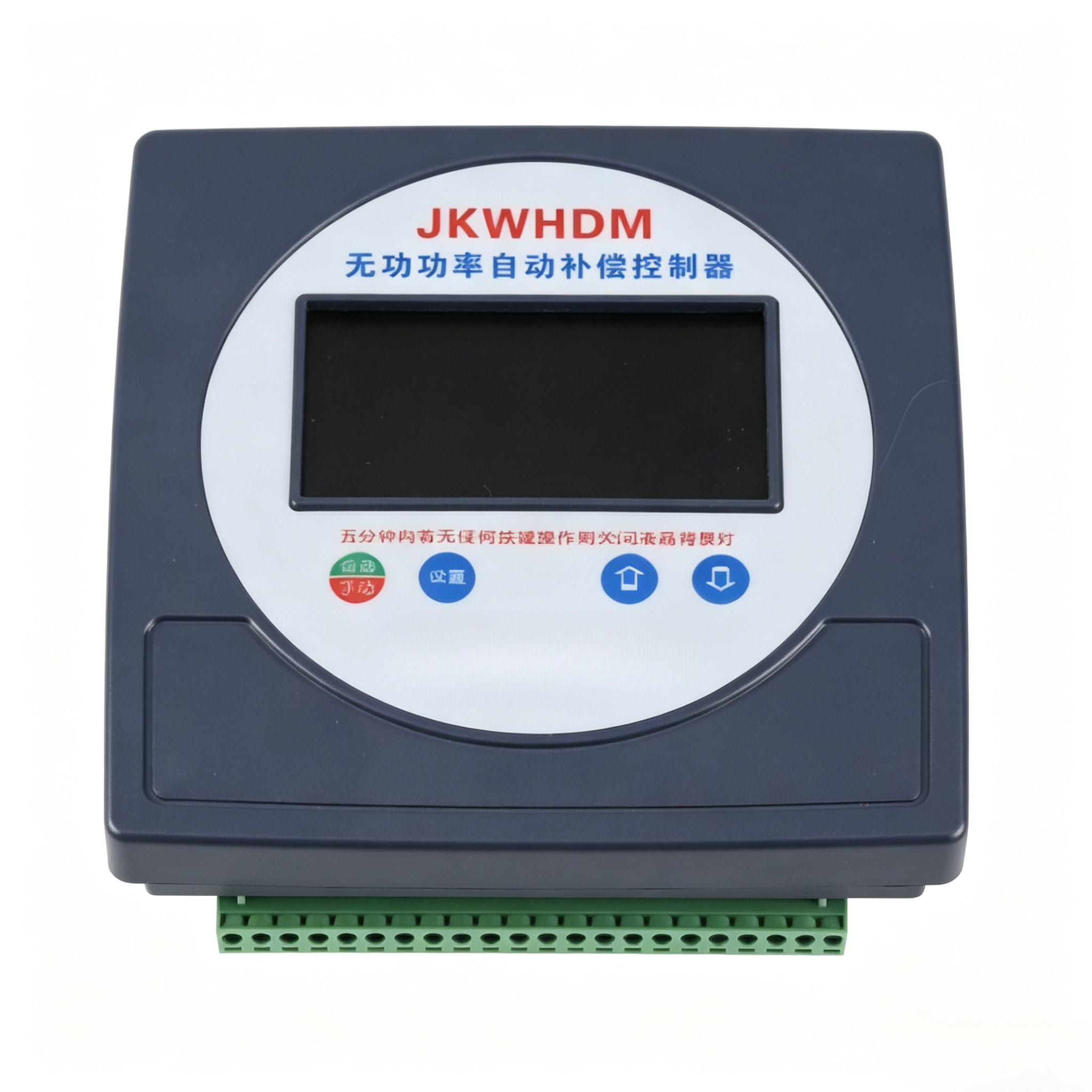

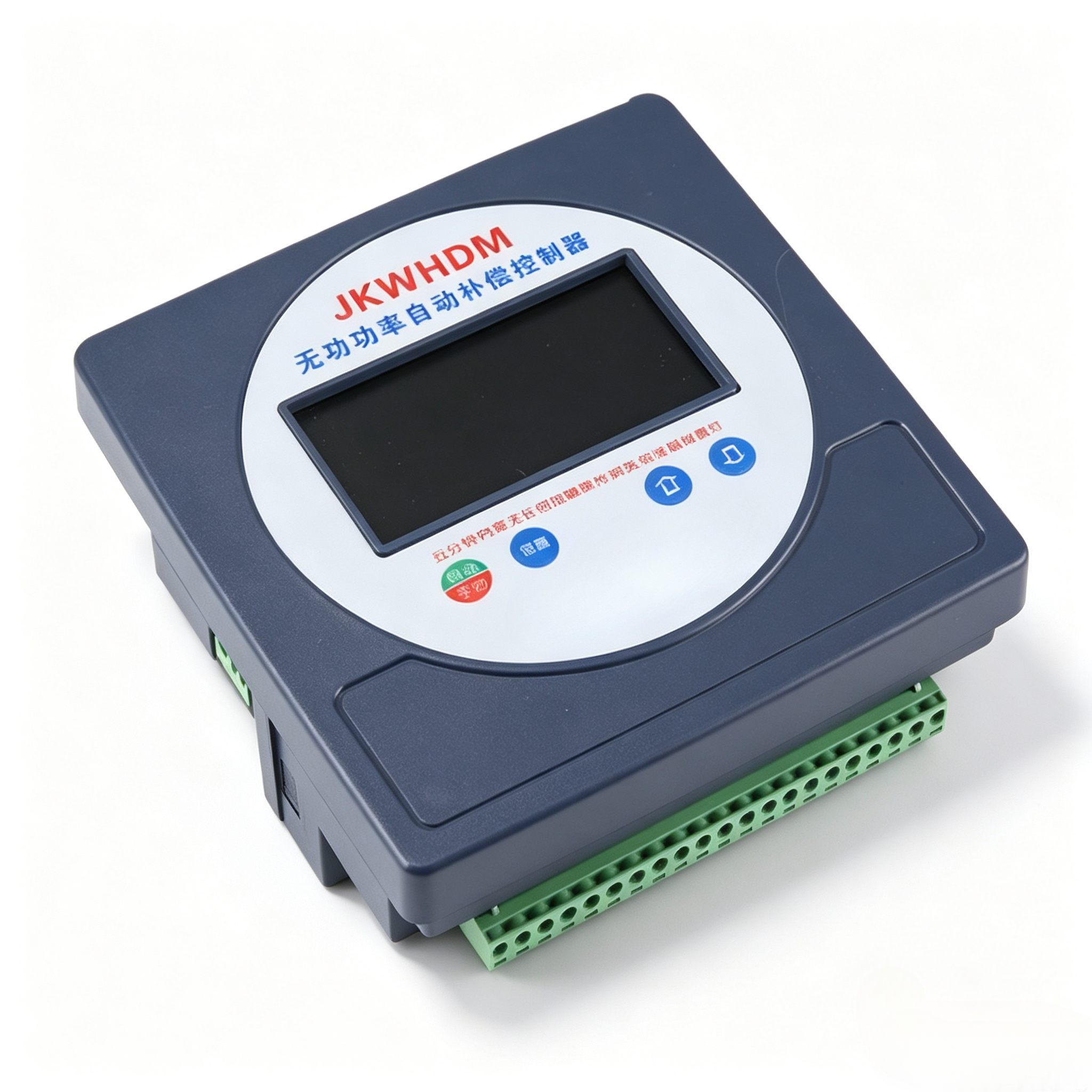

JKWHD‑M Series Automatic Reactive Power Compensation Controller adopts combined control of fundamental‑wave power factor and fundamental‑wave reactive power for capacitor bank switching. It delivers stable switching without oscillation and low sensitivity to harmonics. It can accurately display power data and control switching operations. Equipped with a large character LCD screen, it features user‑friendly human‑machine interface, easy operation and elegant appearance. It is suitable for automatic reactive power compensation control in 0.4 kV systems.
Technical Parameters
Sampling Voltage： AC 220V ±20% or AC 380V ±20%
Sampling Current： AC 0.1–5.0A; below 0.1A: under-current status
Operating Frequency：45–65 Hz
Under-Voltage Threshold：180V or 320V

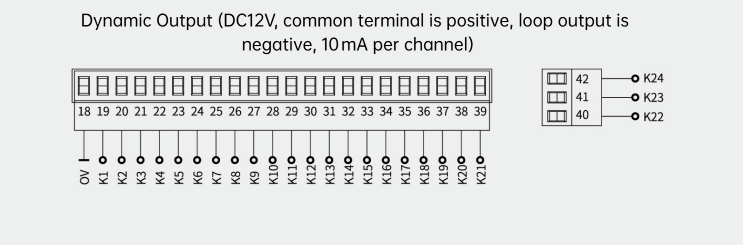

Dynamic Output：DC 12V, 10mA/branch; common positive, output negative

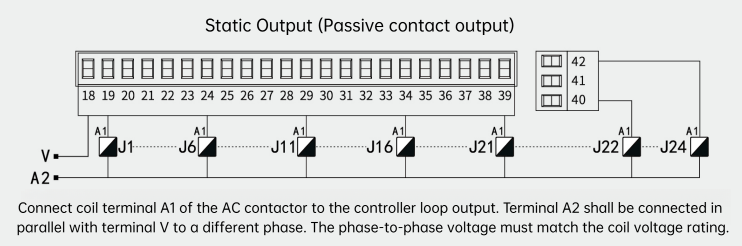

Static Output：Passive relay output, 250V 3A
Alarm Output：Passive relay output, 250V 3A
Power Consumption：≤10W
Protection Rating： IP30
Connection：Pluggable screw terminal
Installation：Flush-mounted with barbed fixing accessories
Cutout Size：139 × 139 mm or 113 × 113 mm
Dimensions：145 × 145 × 72 mm or 122 × 122 × 99 mm

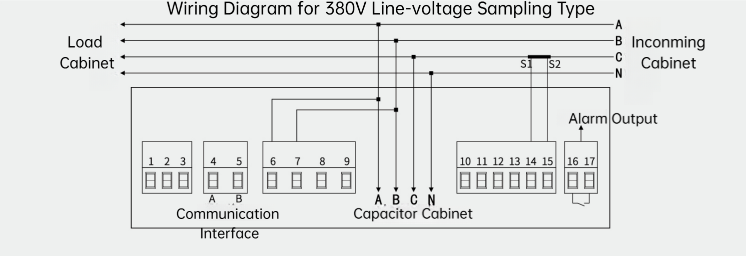

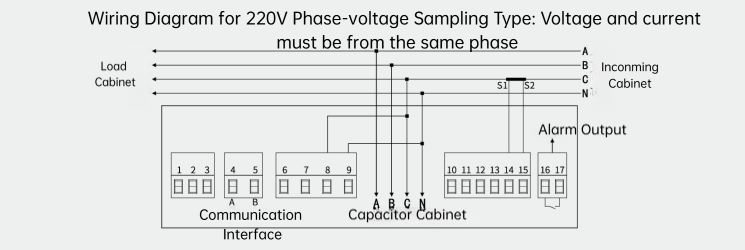

Wiring Drawing
Service Conditions
Altitude: not exceeding 2500 m
Ambient temperature: -20°C to 50°C
Ambient humidity: ≤50% at 40°C, ≤90% at 20°C
No corrosive gases, conductive dust, flammable or explosive substances in the surrounding environment
No severe vibration at the installation site
