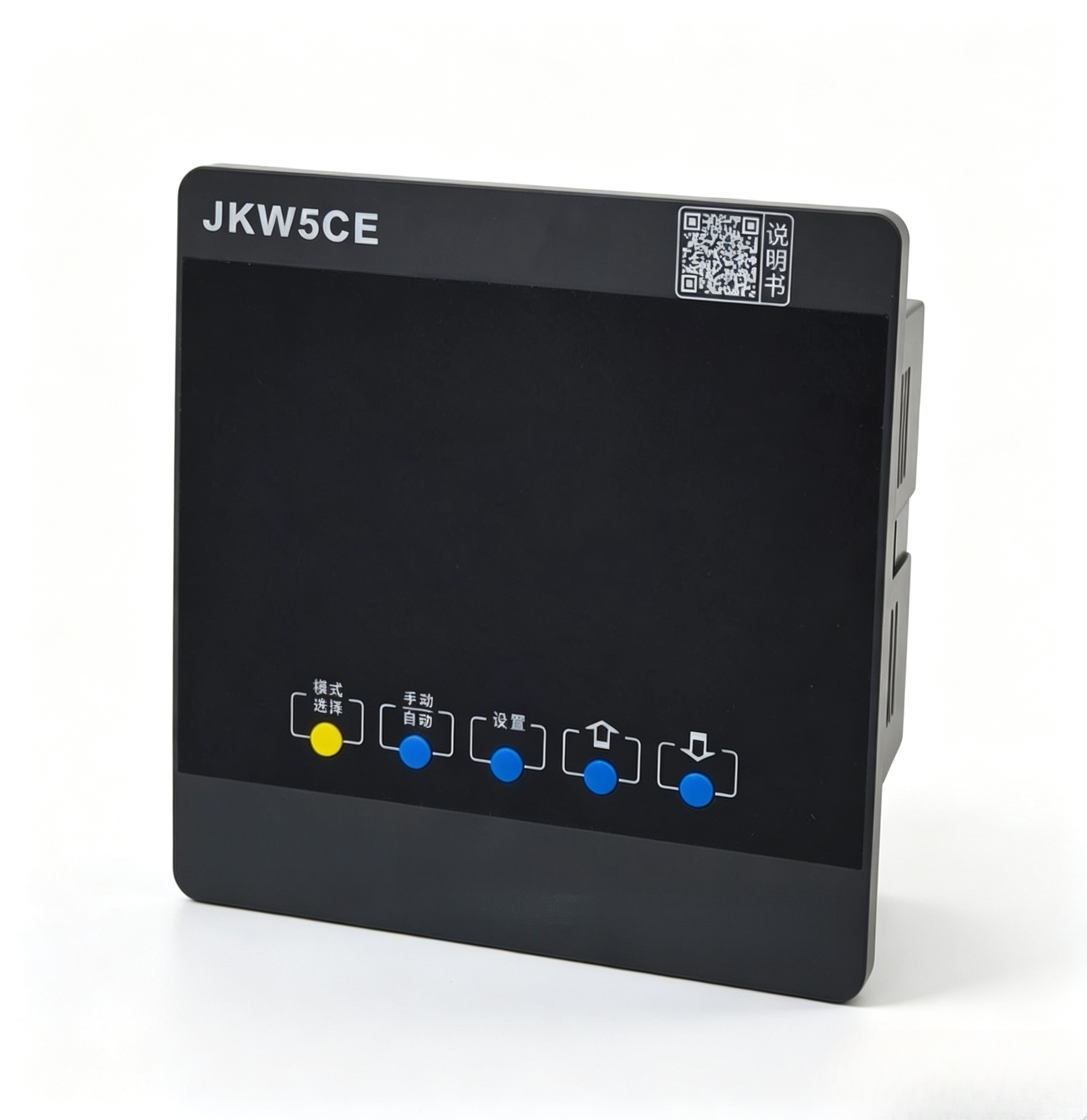

Product Overview
JKW5CE series automatic reactive power compensation controller is suitable for automatic control of three‑phase balanced reactive power compensation in 0.4kV systems. Special voltages can be customized. Please feel free to contact us if required.
Technical Parameters
Sampling Voltage: AC220V or AC380V, range 85%‑120%, fluctuation tolerance ±10%
Sampling Current: AC0.06A‑5.0A. The controller enters under‑current status when current is below 60mA
Operating Frequency: 45Hz‑65Hz
Under‑voltage Threshold: 84% of rated voltage
Dynamic Output: DC12V, 10mA per channel, common terminal positive, output loop negative
Static Output: Passive output, 250V 3A
Total Power Consumption: ≤10W
Ingress Protection: IP30

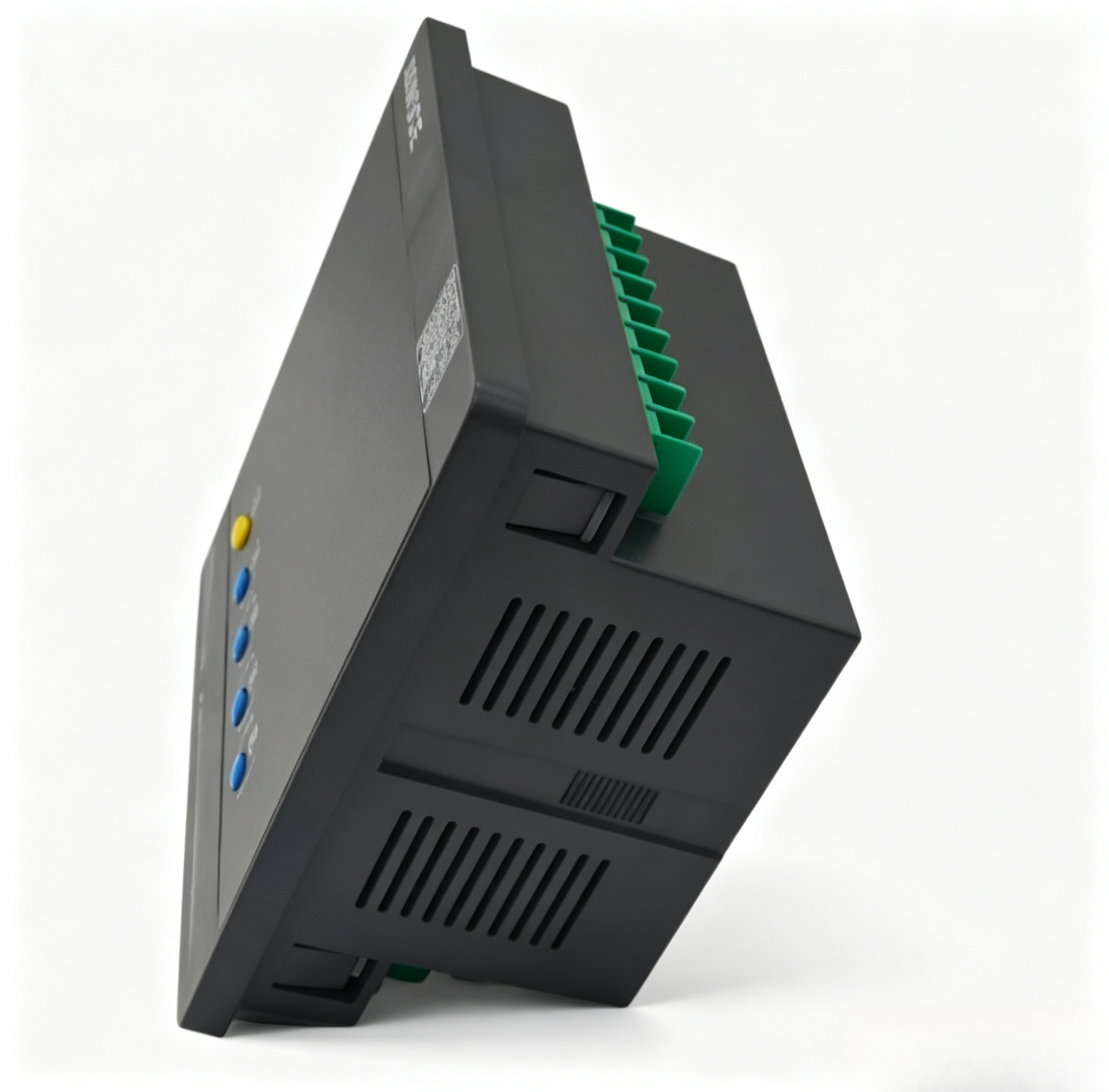

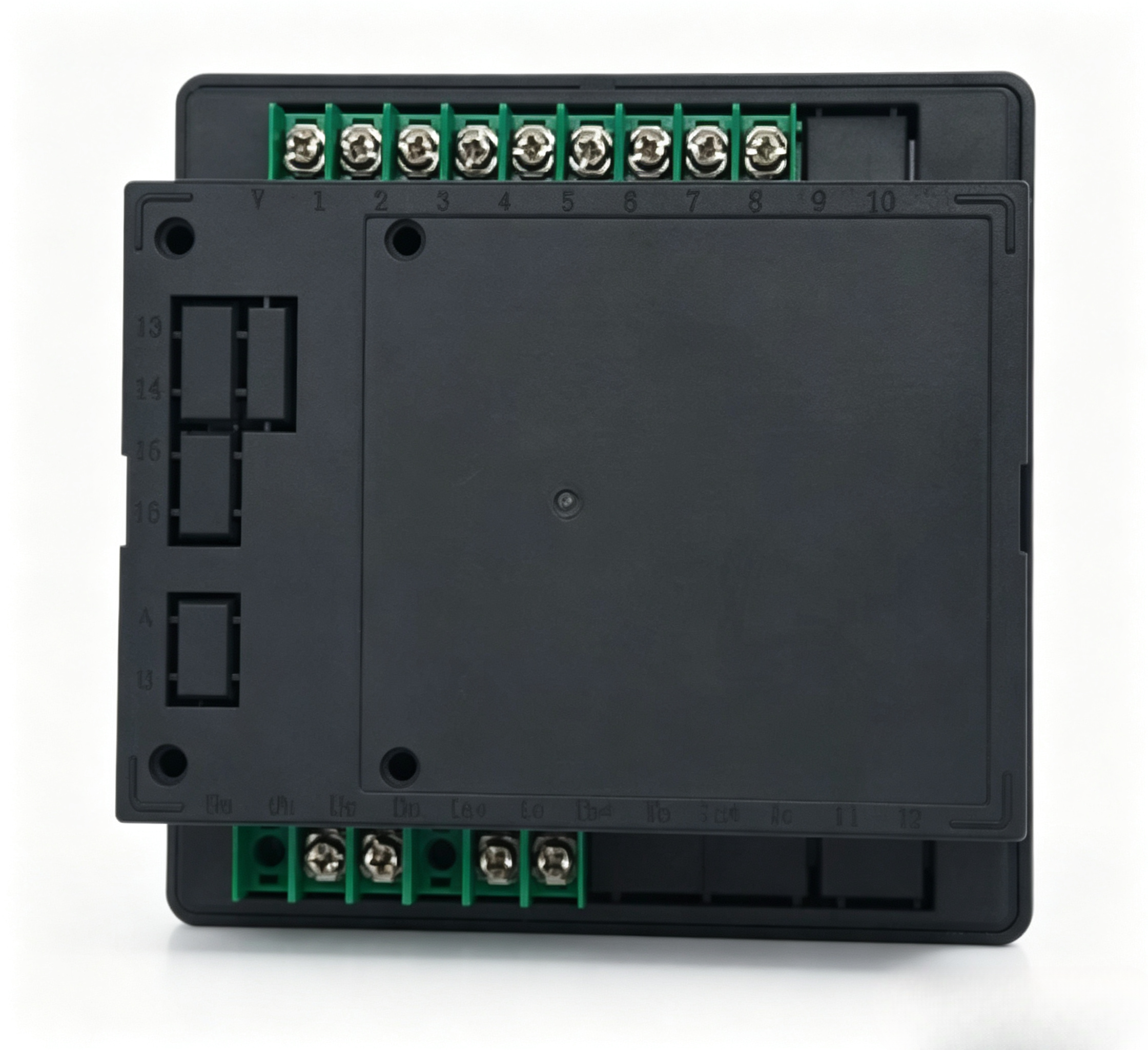

Connection Type: Screw‑fixed terminal blocks
Mounting Method: Flush mounting, secured by barbed fasteners
Cut‑out Dimension: 113mm*113mm
Overall Dimension: Height 122mm * Width 122mm * Depth 80mm

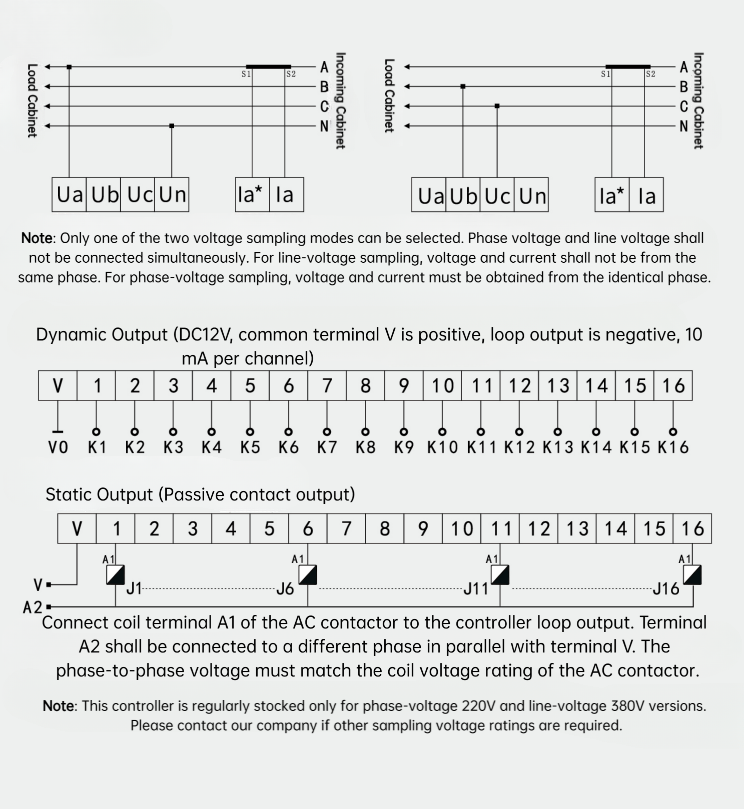

Wiring Drawing
Service Conditions
Altitude: not exceeding 2500 m;
Ambient temperature: -20°C to 50°C;
Ambient air humidity: ≤50% at 40°C, ≤90% at 20°C;
No corrosive gas, conductive dust, flammable or explosive substances in surrounding environment;
No severe vibration at installation site.
