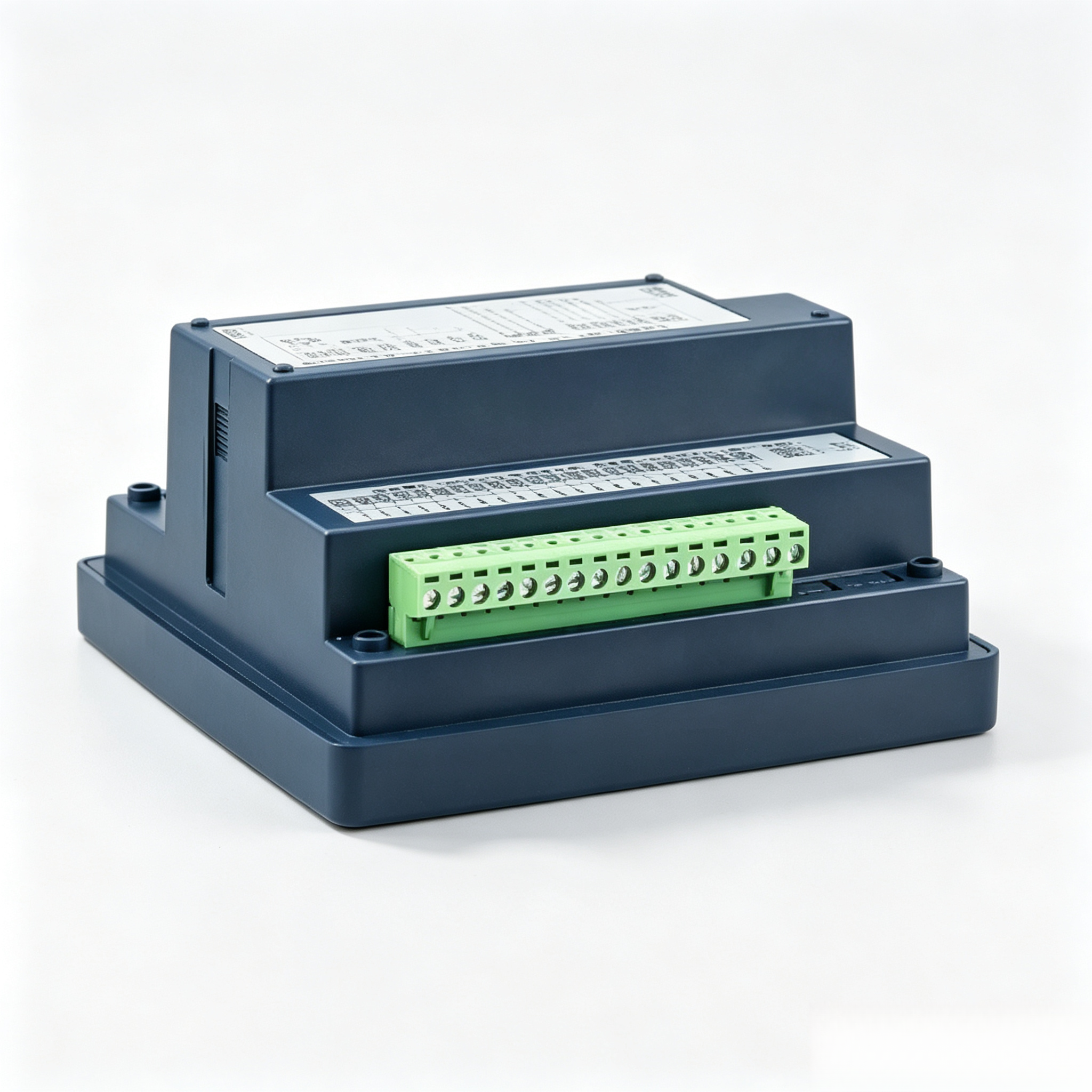

JKW-HV-M Series High-Voltage Automatic Reactive Power Compensation Controller (hereinafter referred to as the controller) adopts the combined control of fundamental power factor and fundamental reactive power to switch capacitor banks. It features stable switching without oscillation and low sensitivity to harmonics. It can accurately display power data and control switching operations. Equipped with a character LCD large screen, it provides a user-friendly human-machine interface with convenient operation and attractive appearance. With PT configuration, it is applicable to the automatic control of reactive power compensation in high-voltage systems.
Key Features
Accurate Capacitor Bank Control: Controls capacitor switching based on fundamental power factor and reactive power, reducing switching oscillation.
Reliable Harmonic Operation: Accurately measures power data and controls capacitor banks under harmonic conditions.
High-Precision Measurement: High-accuracy power factor measurement with a wide adjustment and display range.
Flexible Configuration: Provides 12 capacitor capacity codes for different compensation requirements.
Easy Operation: Large LCD screen with a clear Chinese menu and digital parameter display.
Auto & Manual Modes: Supports automatic and manual operation with memory function.
Comprehensive Protection: Includes over-voltage, under-voltage, voltage/current harmonic limit, and over-temperature protection.
Programmable Alarm: Equipped with a passive alarm output port with selectable alarm events.
Parameter Memory: Control parameters are retained even after power failure.
Technical Parameters
Sampling Voltage: PT secondary line voltage AC100V ±15%
Sampling Current: AC0.1A–5.0A; controller enters under-current state below 100mA Operating Frequency: 45Hz–65Hz
Undervoltage Threshold: AC80V

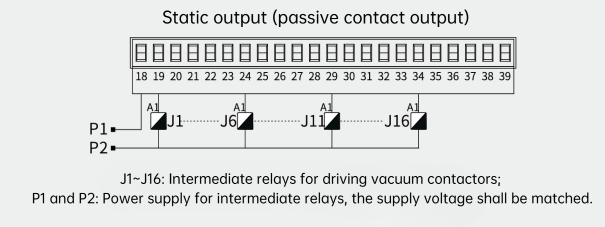

Static Output: Passive relay output, 250V 3A
Alarm Signal: Passive relay output, 250V 3A
Total Power Consumption: ≤10W
Protection Class: IP30

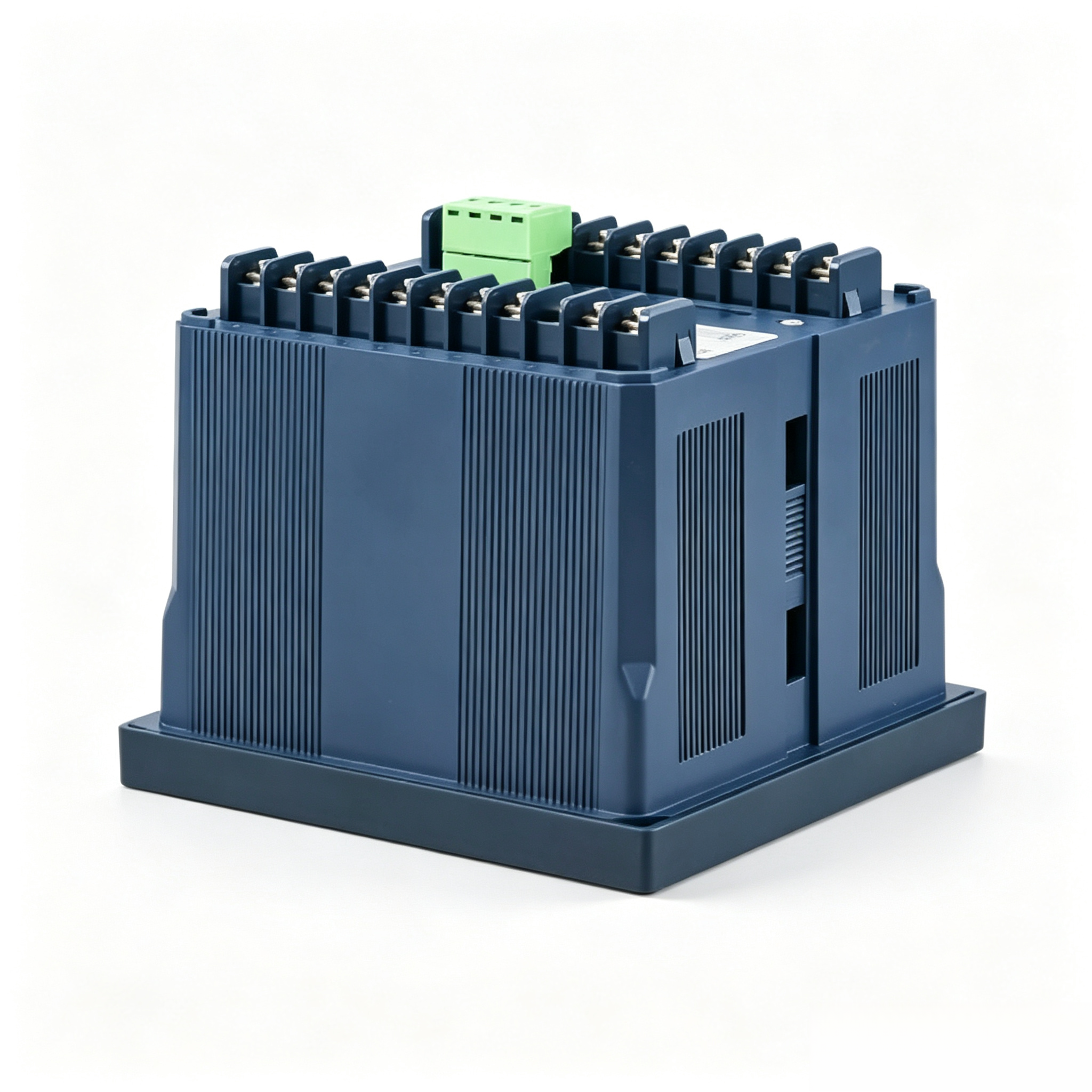

Connection: Pluggable screw terminal blocks
Mounting: Flush mounting with barbs Cutout
Size: 139mm×139mm or 113mm×113mm
Overall Dimension: H145mm×W145mm×D72mm or H122mm×W122mm×D99mm

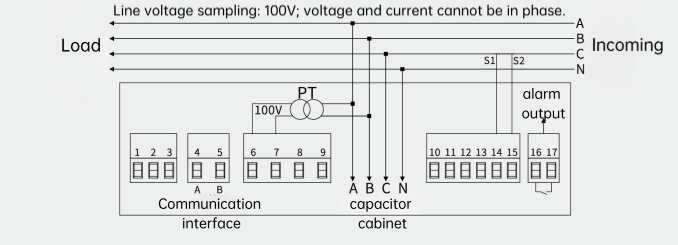

Wiring Drawing
Service Conditions
Altitude： not exceeding 2500 m;
Ambient temperature: -20°C to 50°C;
Air humidity: ≤50% at 40°C, ≤90% at 20°C;
No corrosive gases, conductive dust, flammable or explosive substances in surrounding environment;
No violent vibration at the installation site.
