How Do Dry Transformers Contribute to Energy Efficiency in Power Systems?

Enhancing Energy Efficiency in Modern Power Systems

Optimized Thermal Management for Reduced Losses

The introduction of dry transformers has changed how we handle heat management in electrical power systems. Traditional models rely on oil for both cooling and insulation purposes, whereas modern dry versions depend entirely on air circulation methods. Some systems work with natural convection alone, while others employ fans to force air movement across components. What makes these units so efficient is their ability to cut down on energy needed for fluid circulation. Plus, there's no risk of overheating issues that plague older designs. We've seen cases where this leads to fewer electrical losses overall and extends the life expectancy of equipment before failures occur. Many industrial facilities are making the switch because they want reliable performance without worrying about potential leaks or environmental concerns associated with oil-based alternatives.

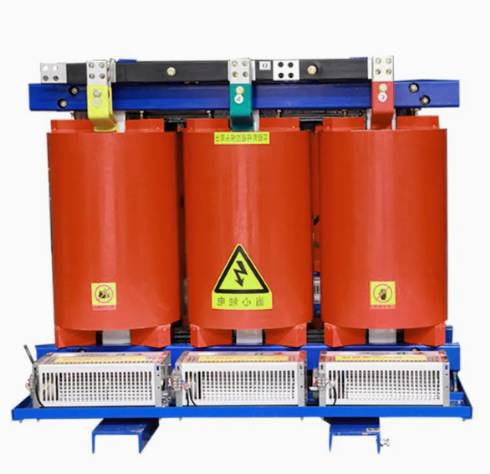

Dry transformers have their windings and core wrapped in solid insulation stuff like epoxy resin or varnish coatings. What these materials do is protect against all sorts of problems moisture, dust buildup, and other nasty contaminants while helping manage heat better than many alternatives. When transformers stay within their ideal operating range, there's less resistance loss happening inside those copper coils, so overall energy efficiency goes up quite a bit. Most modern designs include clever ventilation paths and cooling duct arrangements too. These features let air move through the system properly, which means better temperature control across different load conditions in actual installations.

Use of High-Quality Materials and Advanced Design

The materials used in dry transformers play a critical role in improving energy efficiency. The magnetic cores are often made from high-grade silicon steel or amorphous steel, which possess excellent magnetic properties that minimize core losses—the energy lost due to magnetization cycles within the transformer core.

The winding design is also optimized to reduce copper losses, which occur due to the resistance of the coil conductors. Precision winding techniques, such as vacuum pressure impregnation, ensure that the coils are tightly packed and fully insulated, reducing energy losses caused by leakage currents and eddy currents.

Recent progress in manufacturing techniques has made it possible to use much thinner lamination sheets along with better designed coils. These changes help cut down on stray losses and boost how efficiently transformers actually work. When we look at all these improvements together, they make dry transformers meet those tough energy efficiency requirements. Standards organizations like IEC and the US Department of Energy have pretty high bars for performance, but modern designs are now hitting those targets without breaking a sweat. Manufacturers find this particularly helpful when trying to stay competitive while still meeting regulatory demands.

Environmental and Operational Benefits

Dry transformers actually help the environment in several important ways. They run with fewer losses so less energy gets lost as heat, which means we need less electricity generated overall and that cuts down on those pesky greenhouse gases too. Plus, since these transformers don't contain oil, there's no chance of soil or water getting contaminated if there happens to be a leak or spill. Oil filled transformers can really mess things up when something goes wrong, making this oil free aspect pretty crucial for protecting our surroundings.

Dry transformers actually consume far less energy when it comes to cooling since they don't have those oil pumps or heaters that oil filled transformers typically rely on to keep things flowing and at the right temperature. Maintenance becomes much simpler too. No more dealing with oil samples, filtering through dirty oil, or replacing old oil entirely. All these differences mean significant savings in day to day running expenses. Plus, over time, the whole system produces fewer greenhouse gases compared to traditional models. Power companies are starting to notice this advantage as they look for ways to cut costs while still meeting environmental regulations.

Moreover, dry transformers are designed to be more durable in challenging environments. Their solid insulation materials are resistant to humidity, chemical exposure, and temperature variations, which often degrade the performance of oil-filled units. This robustness ensures longer service life and consistent energy efficiency even under harsh operating conditions.

Integration with Smart Grids and Renewable Energy

Supporting Renewable Energy Technologies

As countries around the world shift toward renewables such as solar panels and wind turbines, managing electricity systems has become increasingly complex. Issues like unpredictable power generation and maintaining stable grids have emerged as major concerns. Dry transformers play a key role here since they help maintain proper voltage levels while ensuring good power quality across networks. These devices run efficiently, cutting down on wasted energy during conversions something that matters a lot when dealing with renewable sources that don't always produce steady output. For instance, solar farms generate electricity only during daylight hours, making efficient transformers essential for smooth grid operations despite these fluctuations.

Additionally, dry transformers’ compatibility with advanced monitoring systems allows for real-time tracking of electrical parameters, helping grid operators respond quickly to fluctuations in renewable generation. This adaptability ensures smooth integration of clean energy while maintaining the overall efficiency of the power grid.

Enabling Predictive Maintenance and Load Optimization

Adding sensors and smart monitoring systems to dry transformers really boosts their energy efficiency because it makes predictive maintenance possible. These little devices keep track of things like temperature changes, moisture levels, how much load is being handled, plus several other important factors. All this information gets sent over to central control panels where technicians can see what's going on. The whole point is catching problems early before they turn into big headaches. When operators spot something wrong ahead of time, they can fix it before the transformer breaks down completely. This means less time spent waiting for repairs and keeps everything running smoothly most of the time.

Load optimization facilitated by smart controls ensures that transformers operate within their ideal capacity range. By avoiding overloading or underloading conditions, energy losses are minimized, and transformer life is extended. Such intelligent management contributes to energy savings and reduces operational costs.

Facilitating Decentralized and Distributed Energy Systems

With power grids getting more decentralized these days, dry transformers are becoming really significant components in modern electrical infrastructure. What makes them stand out is their inherent safety features combined with reliable performance and good efficiency ratings. That's why we see them popping up everywhere from small town microgrid projects to local renewable energy installations across the country. One big advantage? These transformers can actually sit right next to where electricity is needed most. This cuts down on those pesky transmission losses that happen when power travels long distances through wires, which ultimately means better efficiency for everyone involved in the power delivery chain.

Their ability to function efficiently in various environments—from urban buildings to remote renewable installations—supports the development of resilient and sustainable energy infrastructure. This flexibility aligns with modern energy strategies that emphasize reliability, sustainability, and consumer empowerment.

Challenges and Future Directions

Addressing Noise and Size Limitations

Dry transformers have plenty going for them, but they come with some real headaches when it comes to noise and space requirements. The air cooling systems generate quite a bit more noise compared to those using oil, something that becomes a major pain point in places where quiet matters most, such as hospital wings or apartment complexes near transformer stations. We've seen instances where residents actually filed complaints because of the constant hum from these units. To address this growing concern, manufacturers are experimenting with different cooling configurations and developing better soundproofing solutions. Some companies have already started incorporating special acoustic materials into their enclosure designs, while others are looking at alternative cooling methods altogether.

Dry transformers are also typically larger and heavier than their oil-filled counterparts due to the need for sufficient airflow and solid insulation materials. Ongoing research focuses on developing new materials and compact designs to reduce their footprint without compromising performance.

Innovations in Materials and Cooling Techniques

Future developments include the use of eco-friendly insulating materials that enhance thermal conductivity while reducing environmental impact. Hybrid cooling systems that combine air and minimal liquid cooling are being explored to improve heat dissipation and allow for higher power densities.

The integration of artificial intelligence and machine learning into transformer monitoring promises to revolutionize maintenance and operational efficiency, enabling smarter energy management and further reducing losses.

FAQ

How do dry transformers reduce energy loss compared to oil-filled transformers?

They use superior insulation and air cooling to maintain optimal temperatures, reducing resistive and core losses and eliminating energy used for oil circulation.

Are dry transformers suitable for integrating renewable energy sources?

Yes, their efficient operation and smart monitoring capabilities support the variability and quality demands of renewable power.

What environmental benefits do dry transformers offer?

They prevent oil leaks, reduce greenhouse gas emissions through lower losses, and require less maintenance, contributing to cleaner energy distribution.

How does smart monitoring improve transformer efficiency?

It enables predictive maintenance and load optimization, ensuring the transformer operates efficiently and reliably over its service life.
